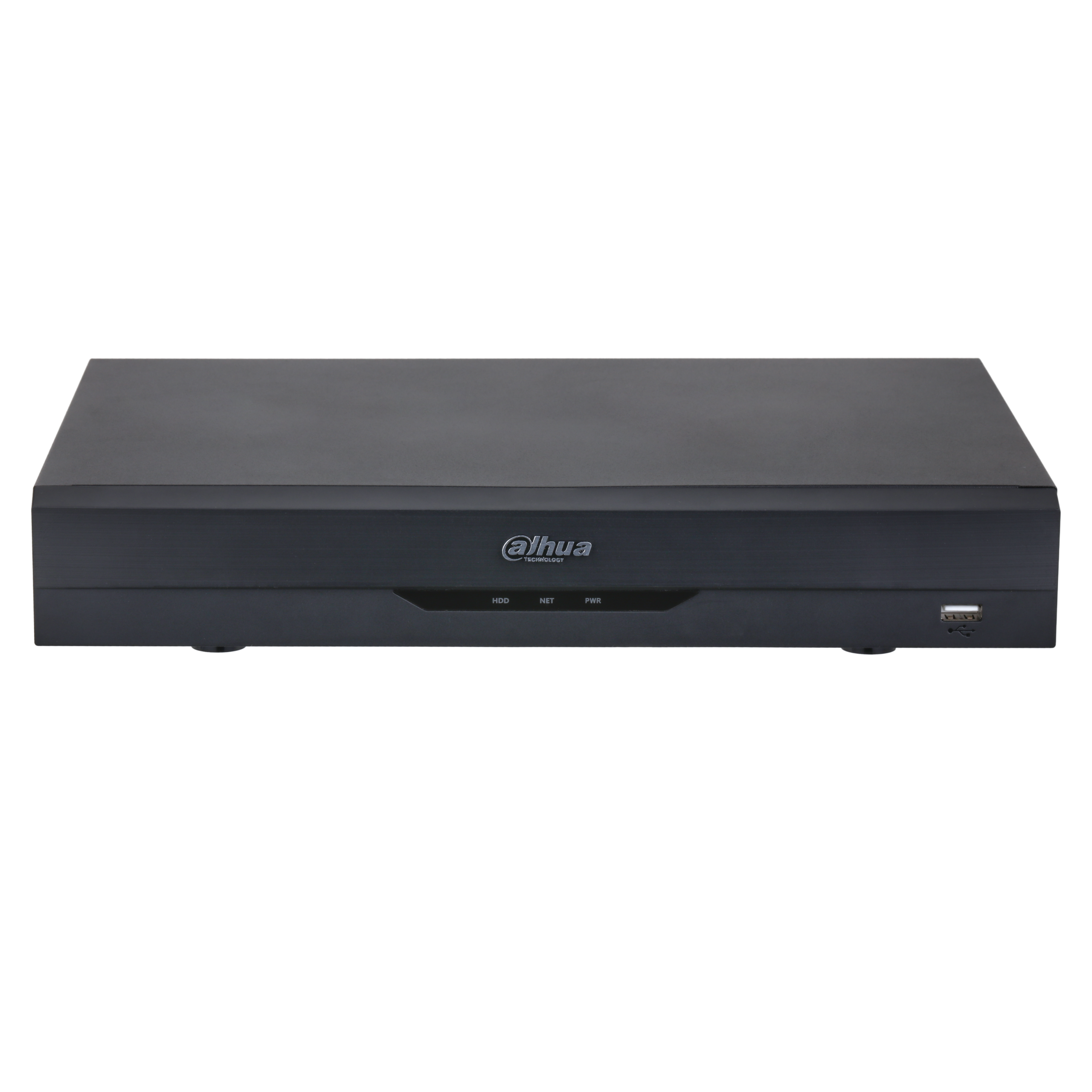

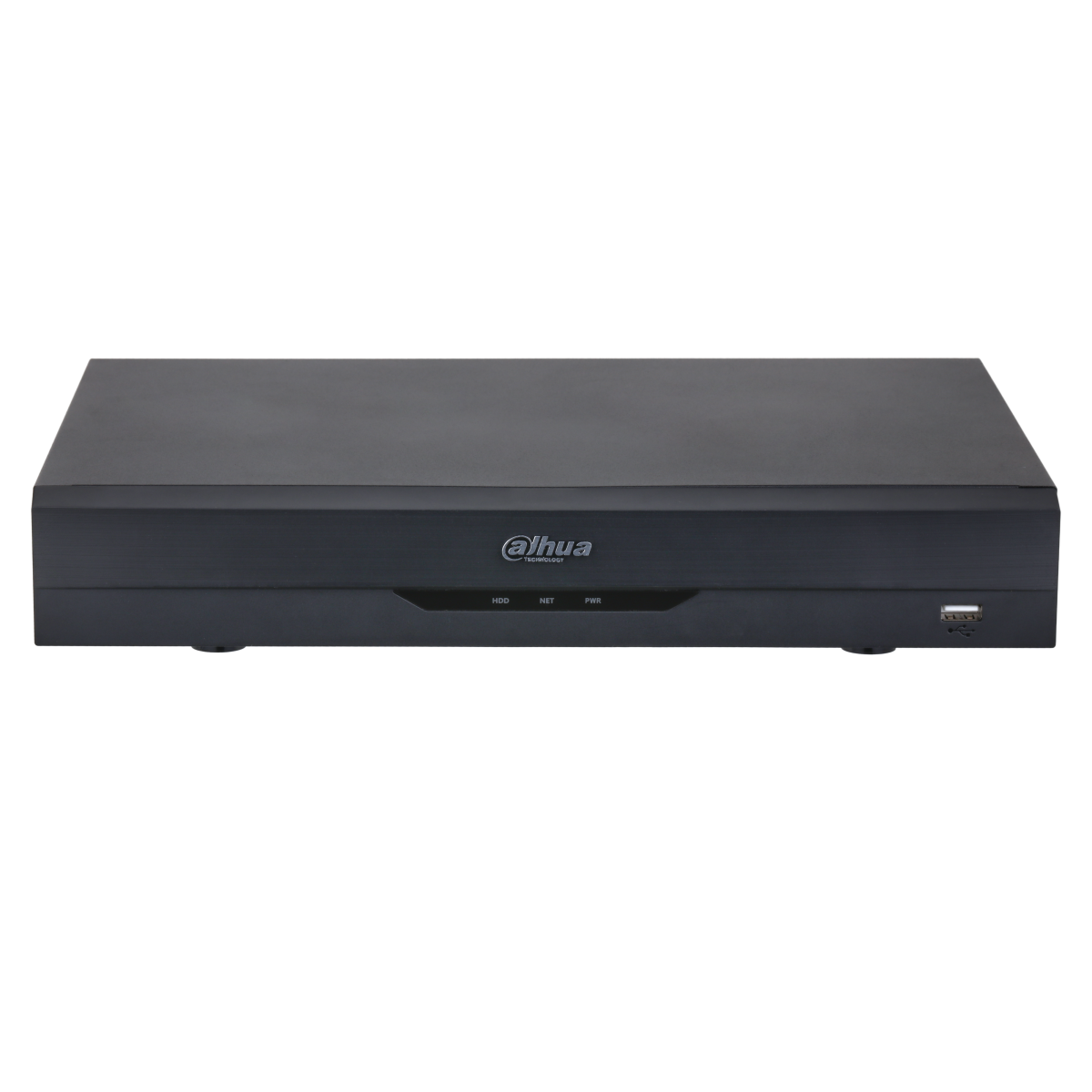

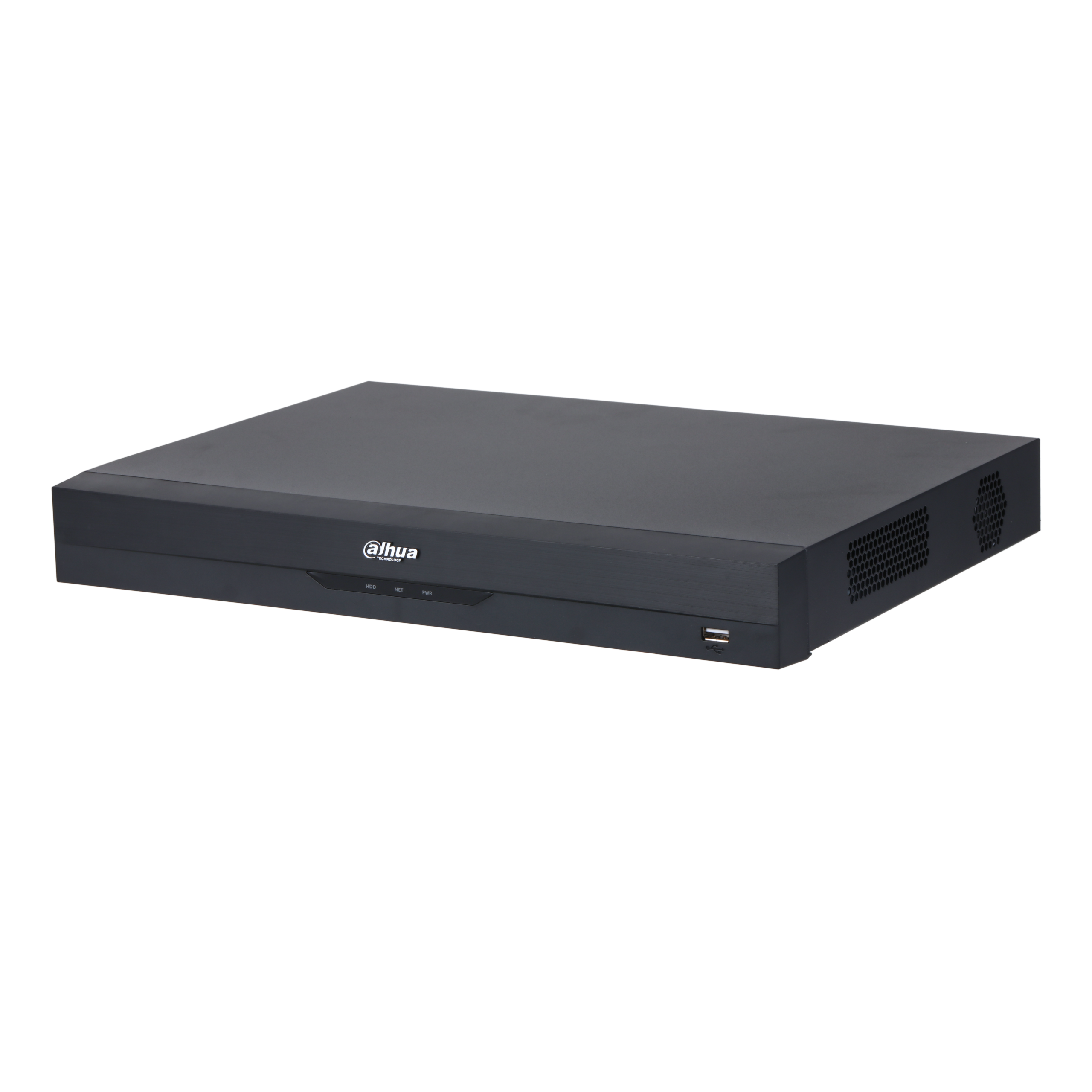

Dahua XVR – DH-XVR5232AN-4KL-I3

Dahua XVR – DH-XVR5232AN-4KL-I3

Product Overview: The Dahua XVR – DH-XVR5232AN-4KL-I3 is a robust and high-performance digital video recorder designed to support extensive surveillance applications. This 32-channel Penta-brid 4K Value/5MP 1U 2HDDs WizSense Digital Video Recorder is equipped with advanced AI features to enhance security and operational efficiency.

Key Features:

• SMD Plus (Smart Motion Detection Plus): Utilizes deep learning algorithms to improve alarm accuracy by analyzing human and vehicle shapes, significantly reducing false alarms.
• AI Coding: Reduces bit rate and storage requirements by up to 50% compared to H.265, without losing decoding compatibility.
• H.265+/H.265 Dual-Stream Video Compression: Efficiently compresses video to save bandwidth and storage.
• Versatile Compatibility: Supports HDCVI, AHD, TVI, CVBS, and IP video inputs, making it compatible with various camera types.
• High Definition Camera Input: Supports up to 4K HDCVI cameras and 8MP IP cameras.
• Long Distance Transmission: Supports long-distance transmission over coaxial cable, up to 700m for 4K/4MP, 800m for 1080P, and 1200m for 720P.
• Smart H.265+ Codec: Reduces bit rate and storage requirements by up to 90% compared to H.264.
• Face Recognition: Supports up to 6 channels of face recognition for analog channels, with a face database capacity of up to 20,000 images.
• Perimeter Protection: Supports up to 12 channels of perimeter protection for analog channels, with advanced AI capabilities for tripwire and intrusion detection.
• Privacy Protection: Supports masking and restoring human faces detected in real-time to ensure privacy.

Technical Specifications:

• Main Processor: Industrial-grade processor
• Operating System: Embedded Linux

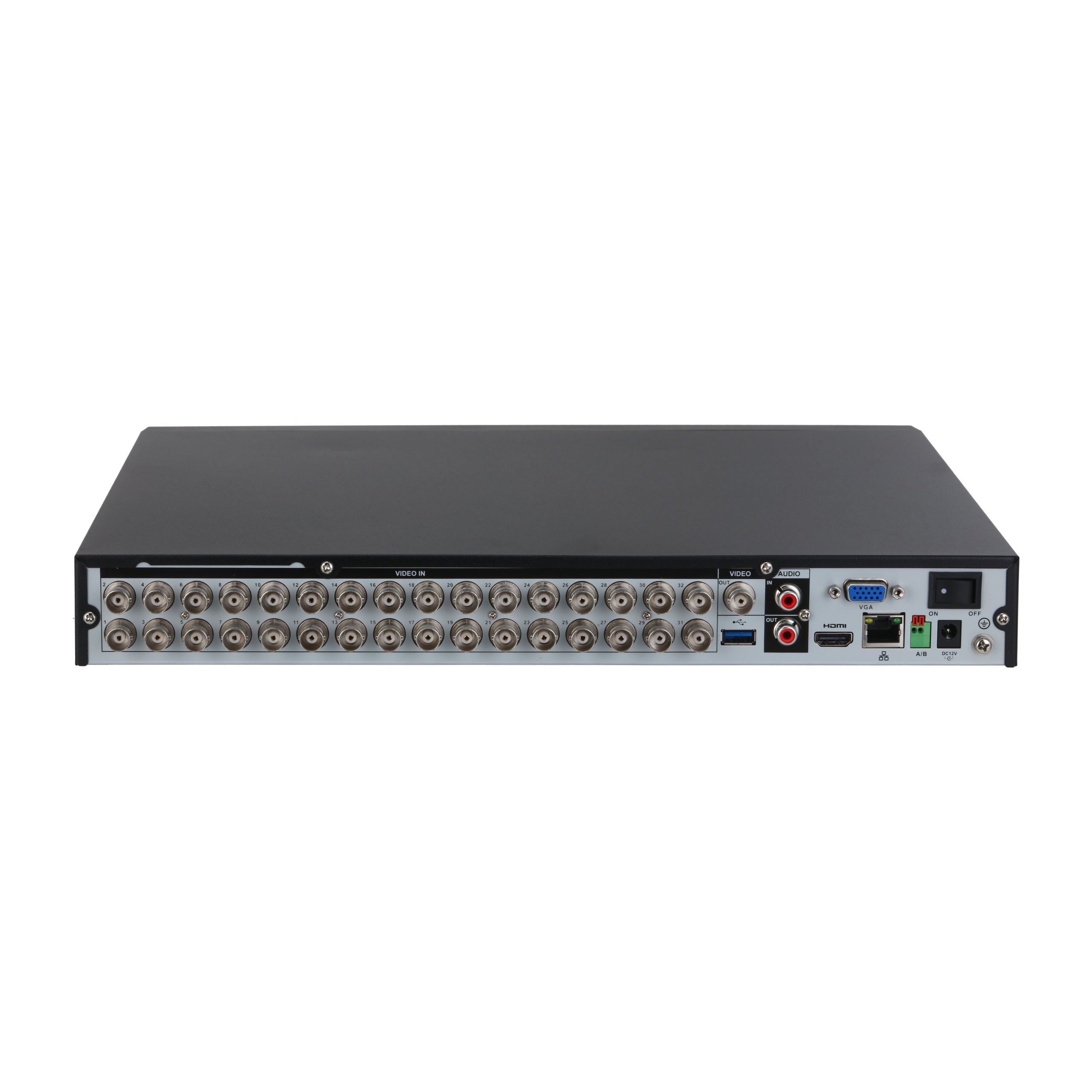

• Video Input: 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• IP Camera Input: Up to 64 channels, each channel up to 8MP
• Video Output: 1 HDMI, 1 VGA
• Multi-screen Display: 1/4/8/9/16/25/36
• Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
• Mobile Phone Access: iOS, Android
• Interoperability: ONVIF 16.12, CGI Conformant
• Recording Playback: 1/4/9/16/25/36 channels
• Backup Method: USB device and network
• Power Supply: DC12V/4A
• Power Consumption: <20W (without HDD)
• Dimensions: 375mm × 327mm × 53mm (14.8″ × 12.9″ × 2.1″)
• Weight: 2.6kg (5.7lb) (without HDD)

Applications: Ideal for a wide range of applications, including large-scale residential, commercial, and industrial environments, the Dahua XVR – DH-XVR5232AN-4KL-I3 ensures reliable and high-quality video recording, enhancing security and peace of mind.
