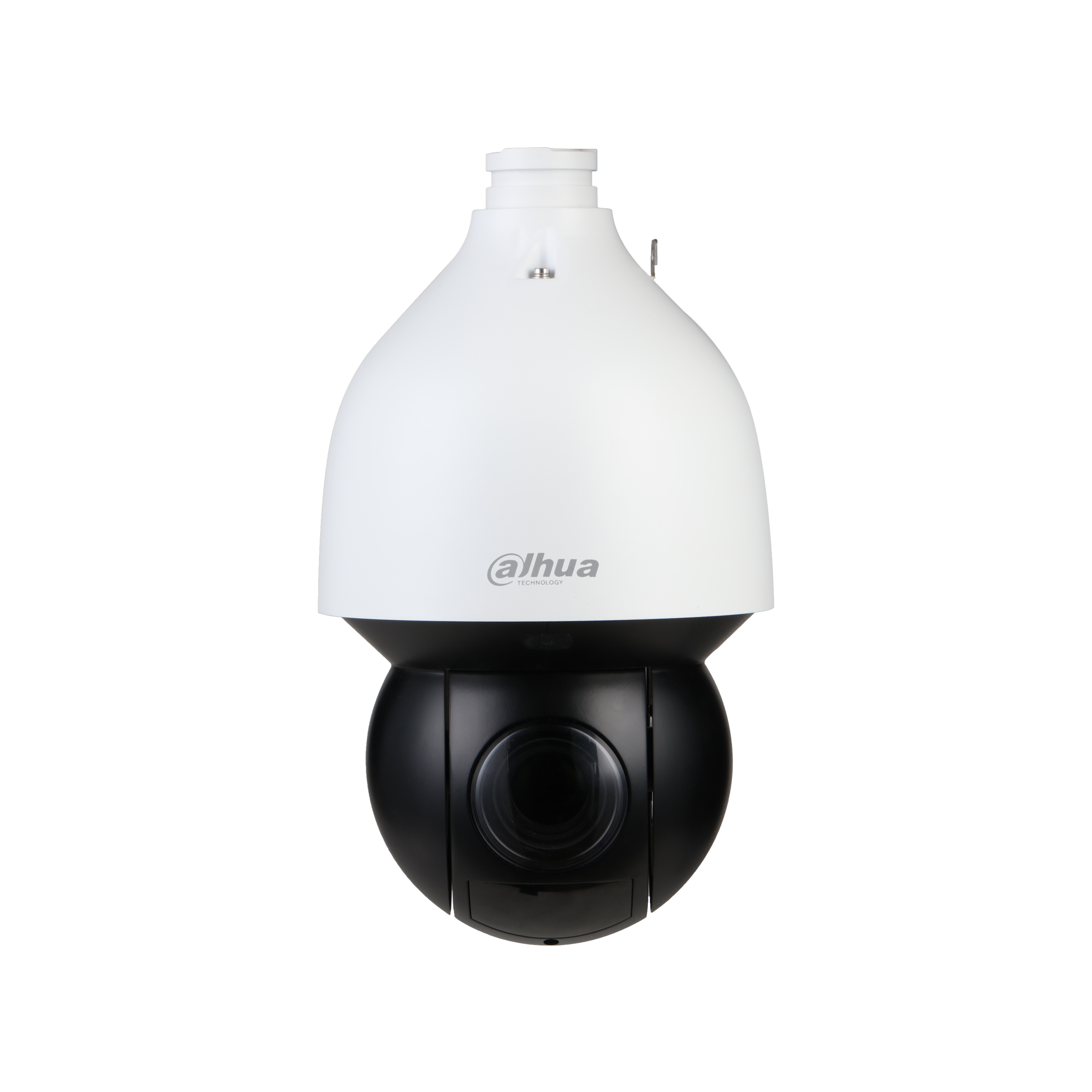

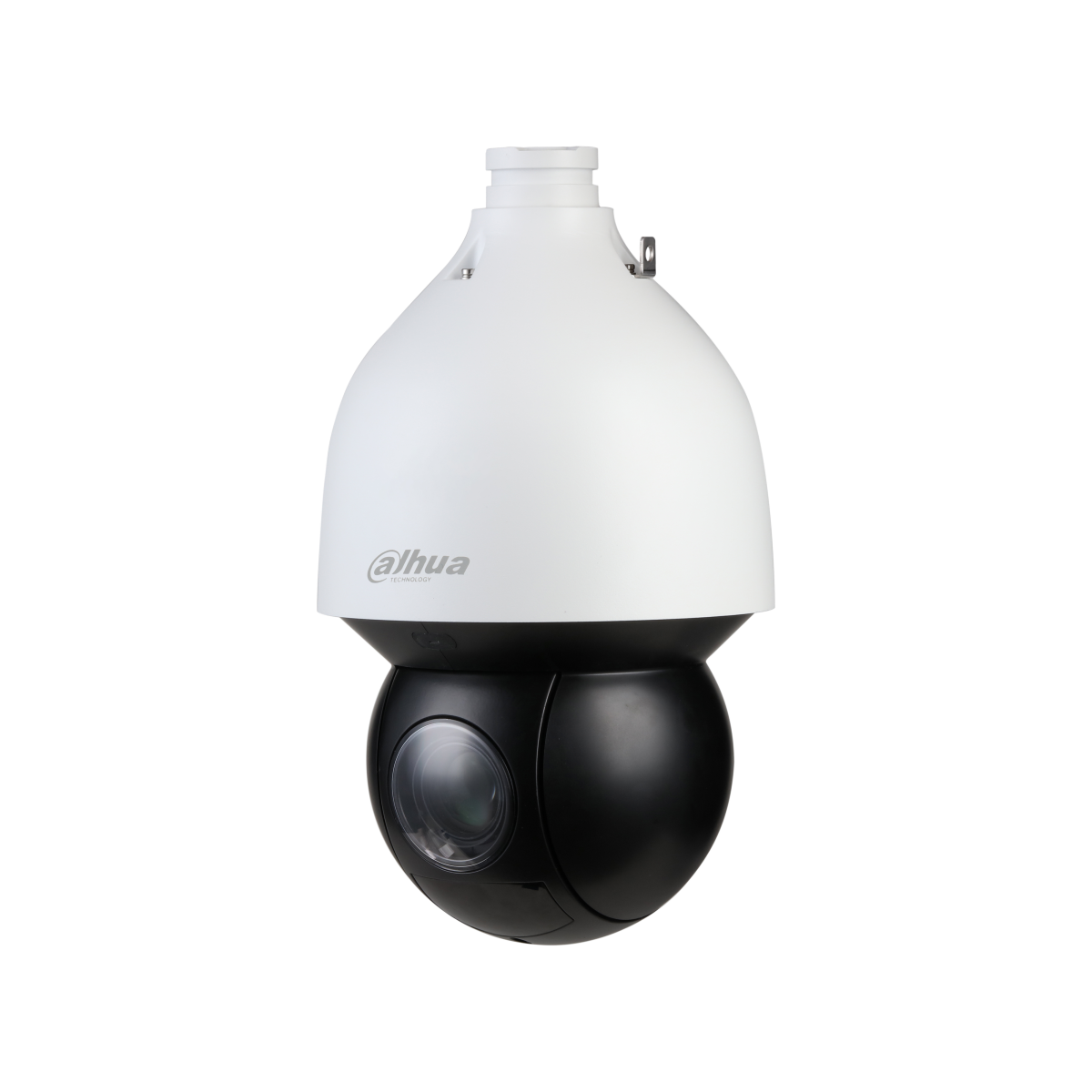

Dahua PTZ Camera – DH-SD5A432GB-HNR

Dahua PTZ Camera – DH-SD5A432GB-HNR

Product Overview: The Dahua PTZ Camera – DH-SD5A432GB-HNR is a high-performance surveillance camera designed to deliver exceptional video quality and extensive monitoring capabilities. This 4MP 32x Starlight IR WizSense Network PTZ Camera is equipped with advanced features to ensure reliable performance in various lighting conditions and environments.

Key Features:

• 4MP STARVIS™ CMOS Sensor: Provides high-quality 4MP resolution video at 25/30 fps, ensuring clear and detailed images.
• 32x Optical Zoom: Allows for close-up views of distant objects without losing image quality.
• Starlight Technology: Offers excellent low-light performance, capturing color details in low light down to 0.005 Lux.
• 120 dB True WDR: Ensures clear images in high contrast lighting conditions by balancing light and dark areas.
• IR Distance up to 150m: Equipped with powerful IR illuminators, the camera can capture clear images up to 150 meters in complete darkness.
• IP67 and IK10 Ratings: Provides protection against dust, water, and vandalism, making it suitable for outdoor installations.
• Pan/Tilt/Zoom (PTZ) Capabilities: Offers a wide range of motion with 360° pan and -15° to +90° tilt, along with auto-flip functionality.
• Auto Tracking 3.0: Automatically tracks moving objects to ensure continuous monitoring.
• Face Detection and SMD 4.0: Supports face detection and smart motion detection to reduce false alarms.

Technical Specifications:

• Image Sensor: 1/2.8″ STARVIS™ CMOS
• Effective Pixels: 2560 (H) × 1440 (V), 4MP
• Lens: 4.8 mm–154 mm, F1.6–F4.0
• Field of View: Horizontal: 55.8°–2.4°, Vertical: 31.9°–1.3°, Diagonal: 63.7°–2.7°
• Video Output: H.265, H.264, MJPEG
• Frame Rate: 4MP (25/30 fps)
• Operating Conditions: -40°C to +70°C (-40°F to +158°F), less than 95% RH
• Power Supply: DC 12V/3A ± 10%
• Power Consumption: 9.6W (23.2W with IR and PTZ)
• Dimensions: 295.4 mm × Φ160.0 mm (11.63″ × Φ6.30″)
• Weight: Net Weight 3 kg (6.61 lb), Gross Weight 4.2 kg (9.26 lb)

Certifications:

• CE: EN55032/EN55024/EN50130-4
• FCC: Part 15 subpart B, ANSI C63.4-2014
• UL: UL60950-1+CAN/CSA C22.2 No.60950-1

Applications: Ideal for a wide range of applications, including large outdoor areas, parking lots, and public spaces, the Dahua PTZ Camera – DH-SD5A432GB-HNR ensures reliable and high-quality surveillance, enhancing security and peace of mind.
