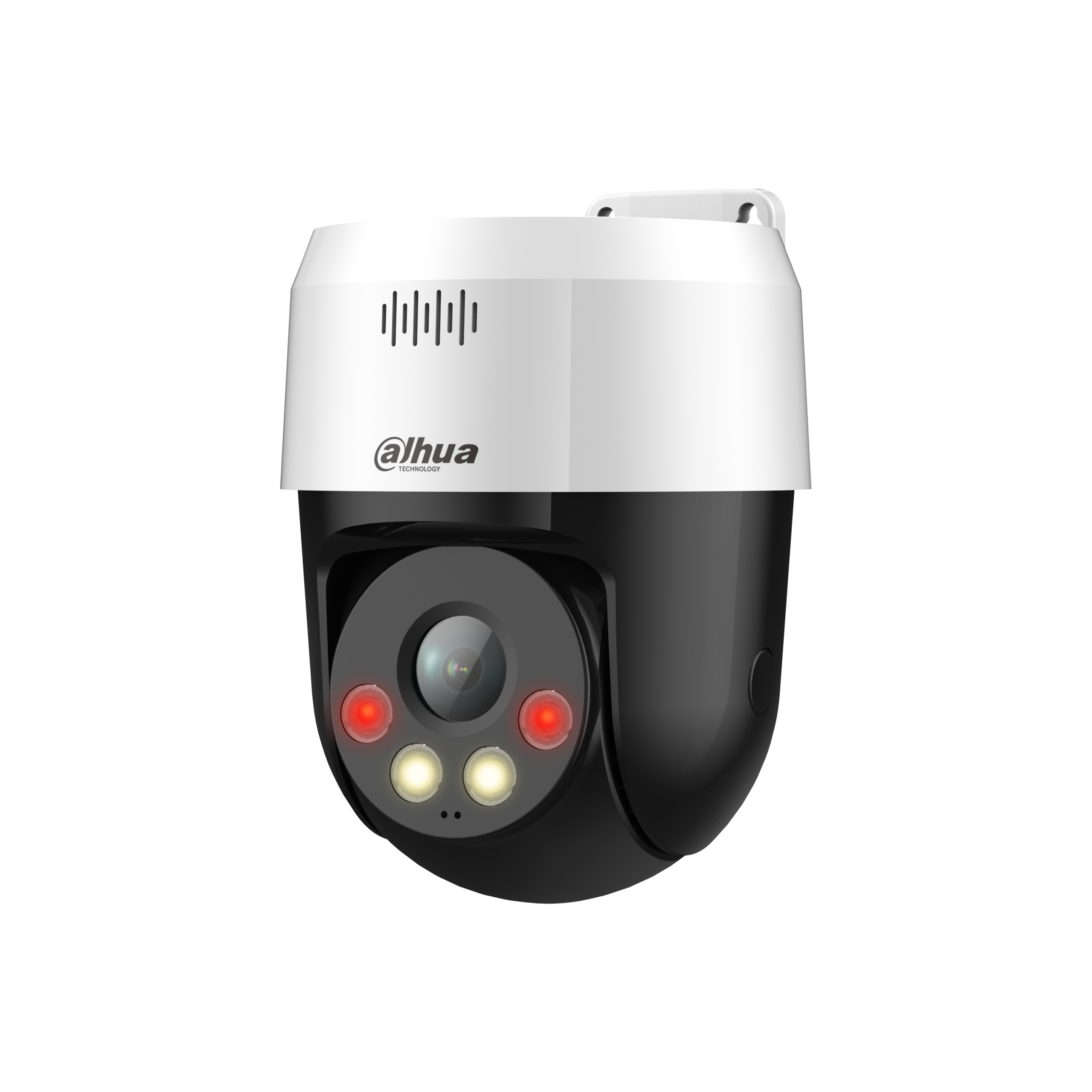

Dahua PTZ Camera – DH-SD2A200HB-GN-A-PV-0400-S2

Dahua PTZ Camera – DH-SD2A200HB-GN-A-PV-0400-S2

Product Overview: The Dahua PTZ Camera – DH-SD2A200HB-GN-A-PV-0400-S2 is a high-performance surveillance camera designed to deliver exceptional video quality and extensive monitoring capabilities. This 2MP Full-color Network PT Camera is equipped with advanced features to ensure reliable performance in various lighting conditions and environments.

Key Features:

• 2MP CMOS Sensor: Provides high-quality 1080P resolution video at 25/30 fps, ensuring clear and detailed images.
• Full-Color Technology: Offers excellent low-light performance, capturing color details in low light down to 0.05 Lux.
• IR and White Light: Equipped with IR and white light illuminators, the camera can capture clear images up to 30 meters in complete darkness.
• Pan/Tilt/Zoom (PTZ) Capabilities: Offers a wide range of motion with 0°–345° pan and 0°–80° tilt, along with 25x optical zoom.
• Active Deterrence: Features sound and light alarm to actively deter intruders.
• IP66 Rating: Provides protection against dust and water, making it suitable for outdoor installations.
• Two-way Talk: Supports two-way audio communication with built-in mic and speaker.

Technical Specifications:

• Image Sensor: 1/2.8″ CMOS
• Effective Pixels: 1920 (H) × 1080 (V), 2MP
• Lens: 4 mm, F2.0
• Field of View: Horizontal: 86.8°, Vertical: 47.1°, Diagonal: 102.2°
• Video Output: H.264, H.265, MJPEG
• Frame Rate: 1080P (25/30 fps)
• Operating Conditions: -40°C to +70°C (-40°F to +158°F), less than 95% RH
• Power Supply: DC 12V/3A ± 10%
• Power Consumption: 9.6W (23.2W with IR and PTZ)
• Dimensions: 295.4 mm × Φ160.0 mm (11.63″ × Φ6.30″)
• Weight: Net Weight 3 kg (6.61 lb), Gross Weight 4.2 kg (9.26 lb)

Certifications:

• CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1
• FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Applications: Ideal for a wide range of applications, including large outdoor areas, parking lots, and public spaces, the Dahua PTZ Camera – DH-SD2A200HB-GN-A-PV-0400-S2 ensures reliable and high-quality surveillance, enhancing security and peace of mind.
