ProLink Copper Accessories PL-RJ6

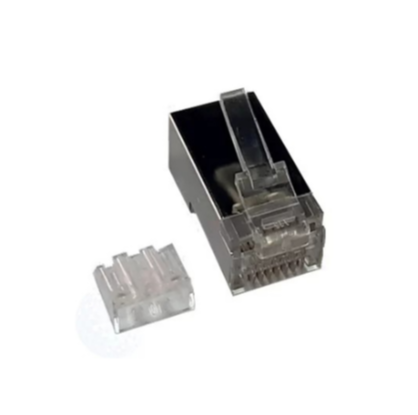

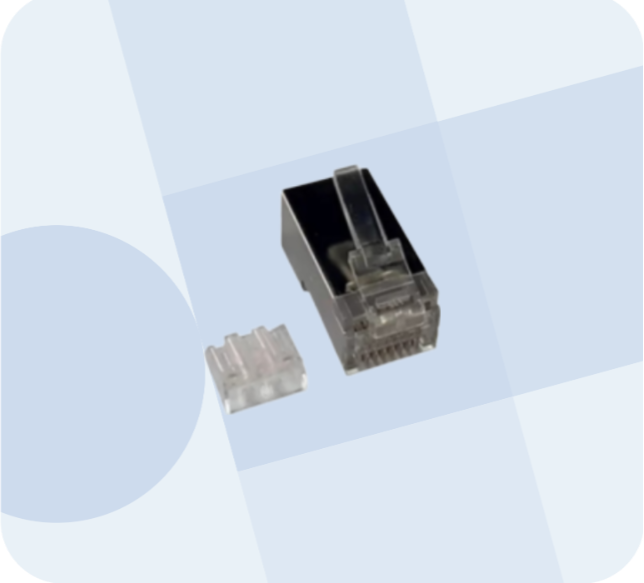

PROLINK RJ45 fTP CAT.6 500 MHZ PL-RJ6

The PROLINK CAT6 FTP Connector PL-RJ6 is designed for exceptional network connectivity. Whether you’re setting up local area networks (LANs) or connecting network equipment, this tool-less connection module delivers reliable performance.

Key Features:

• Category 6 (500MHz): The PL-RJ6 fulfills the requirements of Category 6, ensuring reliable data transmission.
• Tool-less Connection: No need for specialized tools; simply insert the cable into the IDC termination.
• Shielded Design: Round, shielded cable type for enhanced performance.
• Conductor Compatibility: Compatible with both solid and stranded conductors.
• Dimensions: Suitable for cable diameters ranging from 4.7 mm (minimum) to 5.5 mm (maximum).
• Contact Plating: 1.27 μm thickness for optimal conductivity.
• Temperature Range: Operates between -40°C to +60°C (-40°F to +140°F).

Technical File
