Dahua IP Camera – DH-IPC-HFW1230S1P-A-0360B-S5- QH2

Dahua IP Camera – DH-IPC-HFW1230S1P-A-0360B-S5-QH2

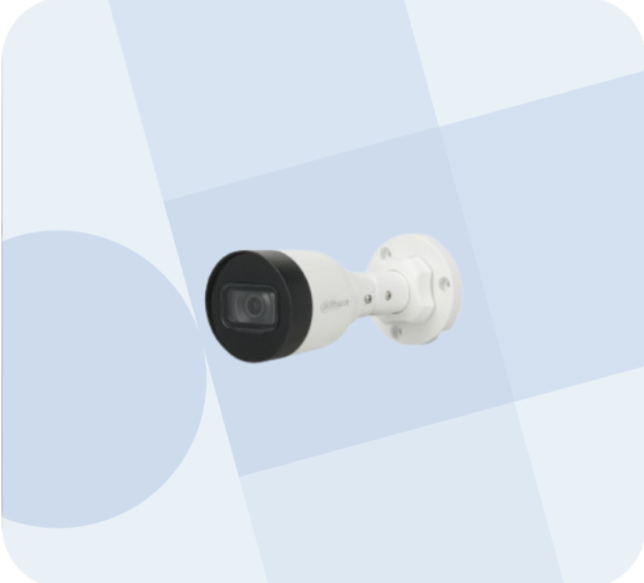

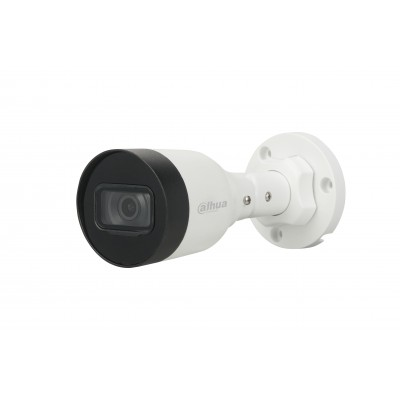

Product Overview: The Dahua IP Camera – DH-IPC-HFW1230S1P-A-0360B-S5-QH2 is a high-performance network camera designed to deliver exceptional video quality and reliable surveillance capabilities. This 2MP IR Fixed-focal Bullet Network Camera is equipped with advanced features to ensure clear and detailed monitoring in various lighting conditions.

Key Features:

• 2MP CMOS Sensor: Provides high-quality 1080P resolution video at 25/30 fps, ensuring clear and detailed images.
• H.265 Codec: Offers high compression rate and ultra-low bit rate, saving bandwidth and storage.
• Built-in IR LED: Ensures clear images up to 30 meters in complete darkness.
• Wide Dynamic Range (WDR): Balances light and dark areas to provide clear images in high contrast lighting conditions.
• 3D Noise Reduction (3D NR): Reduces noise in low-light conditions for clearer images.
• IP67 Rating: Provides protection against dust and water, making it suitable for outdoor installations.
• Built-in Microphone: Supports audio recording for enhanced surveillance.

Technical Specifications:

• Image Sensor: 1/2.8″ CMOS
• Effective Pixels: 1920 (H) × 1080 (V), 2MP
• Lens: 3.6 mm, F2.0
• Field of View: Horizontal: 79°, Vertical: 43°, Diagonal: 94°
• Video Output: H.265, H.264, MJPEG
• Frame Rate: 1080P (25/30 fps)
• Operating Conditions: -40°C to +60°C (-40°F to +140°F), less than 95% RH
• Power Supply: DC 12V/PoE (802.3af)
• Power Consumption: <5W
• Dimensions: 166.2 mm × 70 mm × 70 mm (6.54″ × 2.76″ × 2.76″)
• Weight: 0.42 kg (0.93 lb)

Certifications:

• CE: EN55032/EN55024/EN50130-4
• FCC: Part 15 subpart B, ANSI C63.4-2014
• UL: UL60950-1+CAN/CSA C22.2 No.60950-1

Applications: Ideal for a wide range of applications, including residential, commercial, and industrial environments, the Dahua IP Camera – DH-IPC-HFW1230S1P-A-0360B-S5-QH2 ensures reliable and high-quality video recording, enhancing security and peace of mind.
