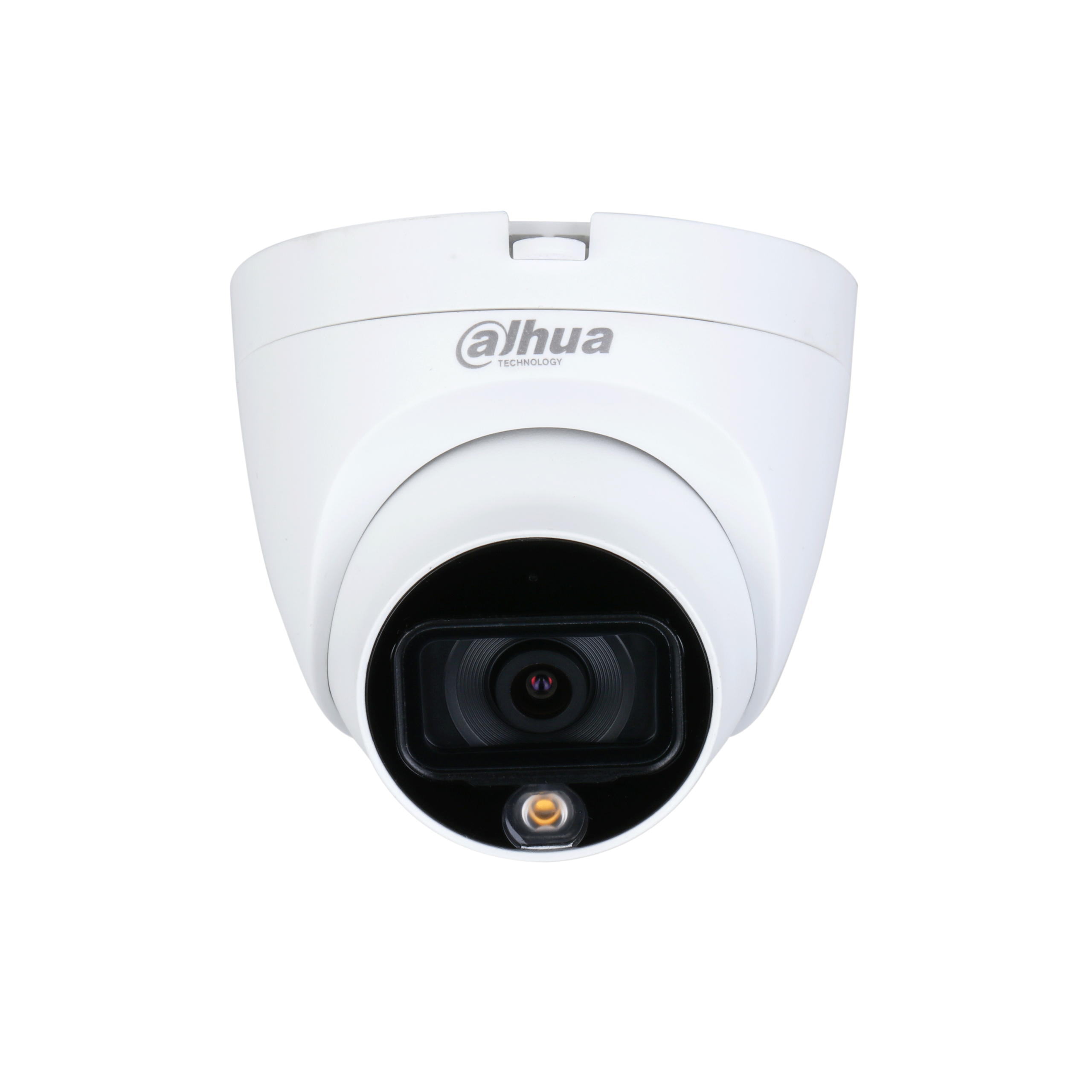

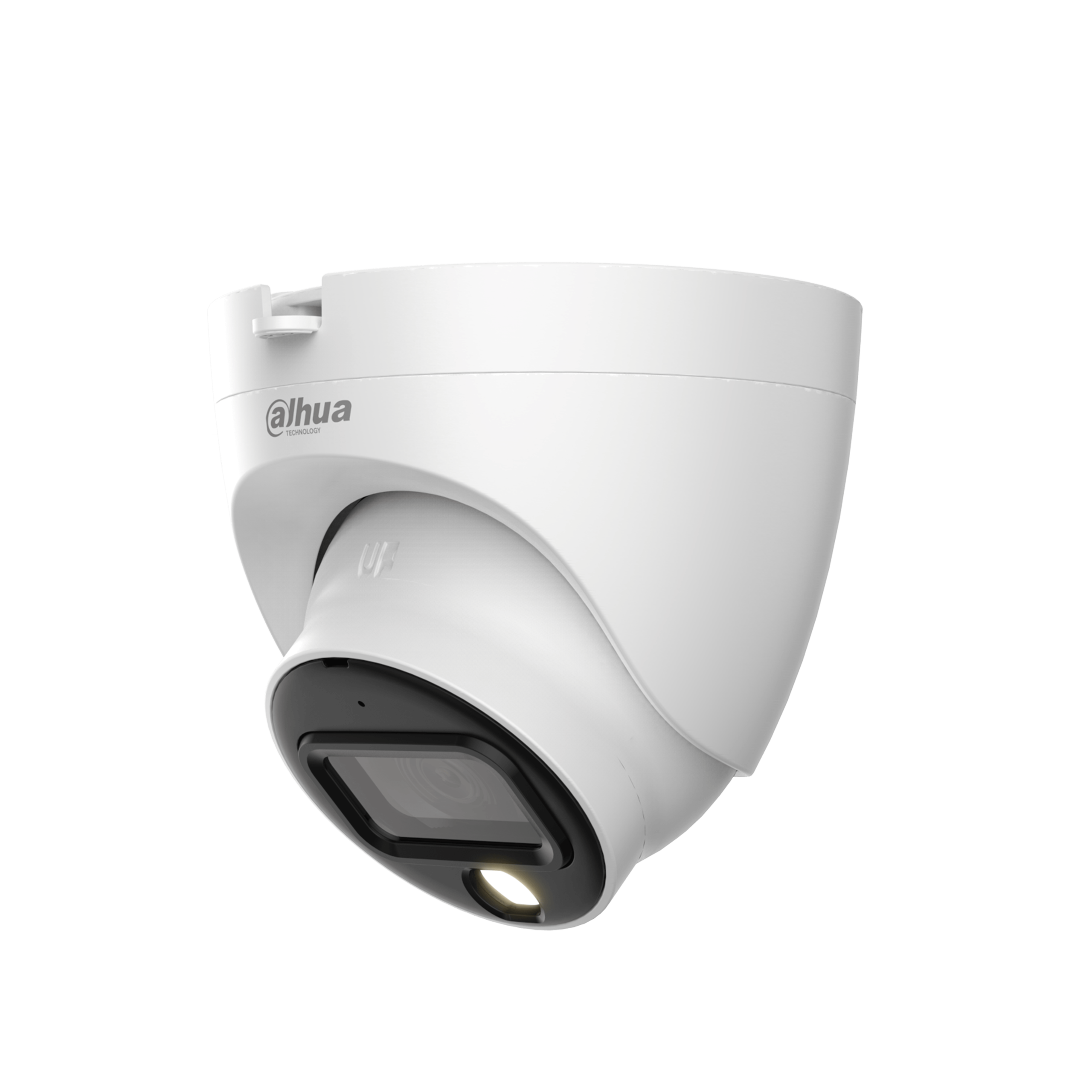

Dahua CVI Camera – DH-HAC-HDW1509TLQP-LED-0280BS2

Dahua Camera CVI – DH-HAC-HDW1509TLQP-LED-0280BS2

Product Overview: The Dahua Camera CVI – DH-HAC-HDW1509TLQP-LED-0280BS2 is a cutting-edge surveillance camera designed to provide superior full-color video quality, even in challenging lighting conditions. This 5MP Full-color HDCVI Quick-to-install Eyeball Camera is built to meet the high standards of modern security systems, ensuring dependable performance and straightforward installation.

Key Features:

• Full-Color Starlight Technology: This camera utilizes advanced starlight technology to capture high-quality color images in low-light environments, ensuring clear and detailed footage at all times.
• 20m Illumination Distance: Equipped with powerful warm white LED illuminators, the camera covers an effective range of up to 20 meters, providing comprehensive area coverage.
• High Definition Video: Supports up to 5MP resolution at 25fps, delivering sharp and clear video output.
• Versatile Compatibility: The camera is CVI/CVBS/AHD/TVI switchable, making it compatible with various video formats and existing coaxial infrastructures.
• Robust Design: With an IP67 rating, the camera is protected against water and dust, making it suitable for both indoor and outdoor installations.
• Easy Installation: The quick-to-install eyeball design saves installation time and effort, making it an ideal choice for various applications such as schools, retail centers, and parking lots.

Technical Specifications:

• Image Sensor: 5MP CMOS
• Effective Pixels: 2880 (H) × 1620 (V), 5MP
• Lens: Fixed lens (2.8 mm; 3.6 mm optional)
• Angle of View: 2.8 mm: 112° × 57° × 132° (horizontal × vertical × diagonal)
• Video Output: 1-channel BNC high definition video output / CVBS video output (switchable)
• Operating Conditions: -40°C to +55°C (-40°F to +131°F), less than 95% RH
• Power Supply: 12V DC ±30%
• Power Consumption: Max 4.4W (12V DC, warm light on)
• Dimensions: φ97.1 mm × 91.4 mm (φ3.82″ × 3.6″)
• Weight: Net Weight 0.24 Kg (0.53 lb), Gross Weight 0.37 Kg (0.82 lb)

Certifications:

• CE (EN55032, EN55024, EN50130-4, EN60950-1)
• FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)
• UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Applications: Ideal for a wide range of applications, including educational institutions, retail environments, and parking facilities, the Dahua Camera CVI – DH-HAC-HDW1509TLQP-LED-0280BS2 ensures reliable and high-quality surveillance, enhancing security and peace of mind.
