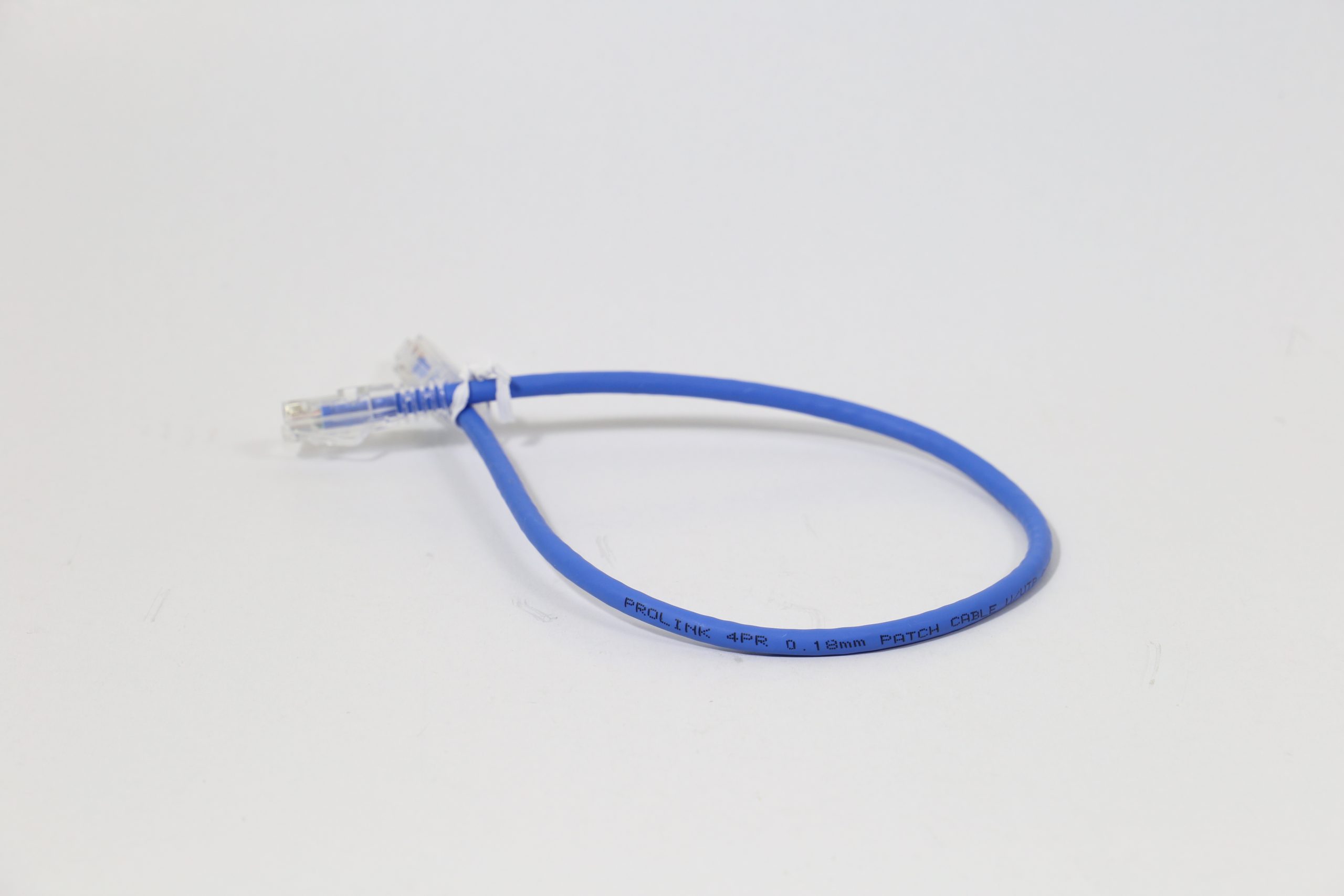

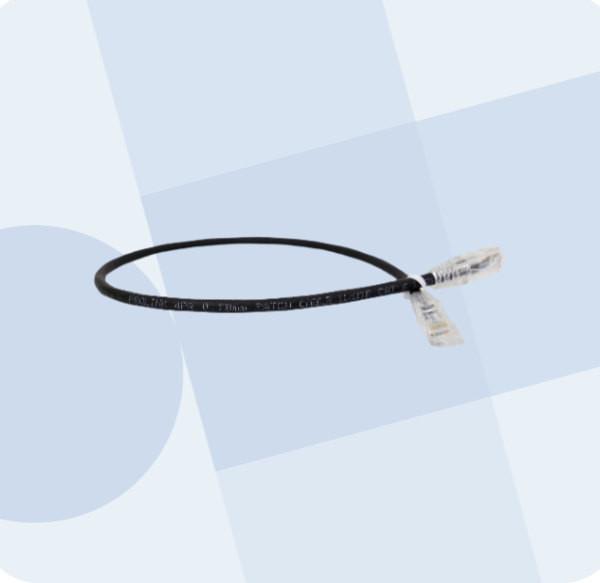

Copper Patch Cord PL-PC-U6A-0.25BL
The PROLINK Cat.6A U/UTP Patch Cord PL-PC-U6A-0.25BL is designed for connecting network equipment to patch panels and telecommunications outlets. It meets the highest international standards, ensuring reliable data transmission at frequencies of up to 250 MHz.
Key Features:
- Category 6A, Class E (650MHz): This patch cord fulfills the requirements of Category 6A, ensuring reliable data transmission at high frequencies.
- Tested and Quality-Stamped: Each individual patch cord undergoes rigorous testing and is marked with a quality stamp.
- Backward Compatible: It can also be used as Cat5e (backward compatible).
- Strain Relief: The wide-function strain relief ensures durability and longevity.
- LSZH Jacket: The low-smoke, zero-halogen (LSZH) jacket minimizes environmental impact and enhances safety.
Technical Specifications:
- Impedance: 100 ohms
- Plug Housing: Polycarbonate
- Contacts: Phosphor bronze (CuSn6) with 0.7 μm selective gold plating
- Shielding: Tin-plated brass
- Current Rating: 1.5A (maximum @ 25°C)
- Voltage Rating: 150 VAC (maximum)
- Dielectric Withstanding Voltage: 1000 VAC, 1 min (60 Hz)
- Insulation Resistance: 250 MOhm (minimum)
- Environmental Range: -10°C to -60°C
Whether you’re setting up a data center, office network, or home network, trust PROLINK for quality and performance.
Technical File
