ProLink Copper Patch Cord PL-PC-U6-1GN

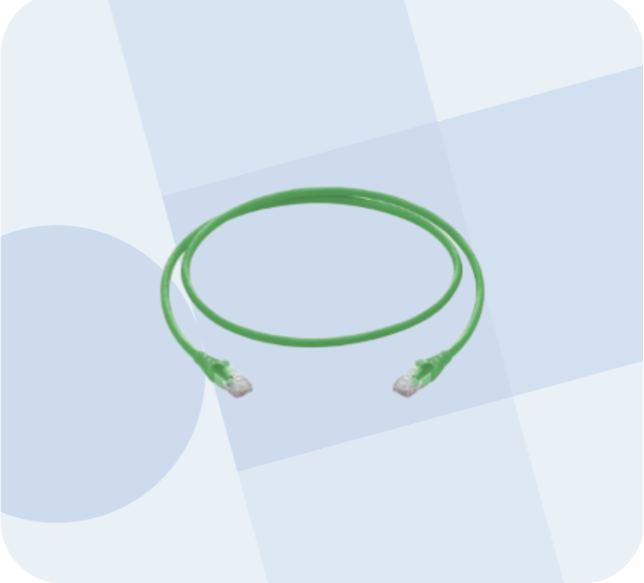

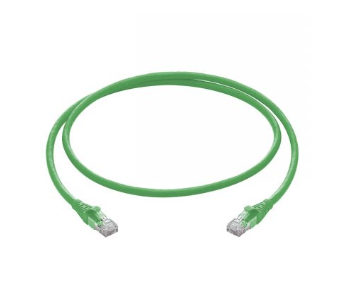

PROLINK U/UTP CAT.6 250 MHz Patch Cord (PL-PC-U6-1GN)

The PROLINK PL-PC-U6-1GN is a high-quality unshielded CAT.6 patch cord designed for connecting network equipment to patch panels and telecommunications outlets. Here are the key features:

1. Performance: Meets the requirements of Category 6, Class E (250 MHz) according to the present standard of ISO/IEC 11801.
2. Compatibility: Can also be used as Cat5e (backward compatible).
3. Quality Assurance: Each individual patch cord is tested and marked with a quality stamp.
4. Strain Relief: Provides robust strain relief for durability.
5. Labeling: Custom labeling possible on the strain relief or color-coding.
6. Length Options: Available in various lengths, including 1 meter (3.28 feet).
7. Impedance: 100 ohms.
8. LSZH (Low Smoke Zero Halogen): Ensures safety in case of fire.
9. Color: Distinct green for easy identification.

Technical Specifications:

• Plug Housing: Polycarbonate
• Contacts: Phosphor bronze (CuSn6) with 0.7 μm selective gold plating
• Voltage Rating: 150 VAC (maximum)
• Dielectric Withstanding Voltage: 1000 VAC, 1 min (60 Hz)
• Insulation Resistance: 250 MOhm (minimum)
• Environmental Range: -10°C to -60°C

Whether you’re setting up a home network or a large-scale enterprise solution, the PROLINK PL-PC-U6-1GN ensures reliable connectivity and optimal performance. Choose quality, choose PROLINK!
