ProLink Copper Cable PL-C6ASF-LSZH-W

Name: ProLink Copper Cable PL-C6ASF-LSZH-W - TechNex Store
SKU: PL-C6ASF-LSZH-W
Price: 12069.00 EGP
Availability: OutOfStock

SKU: PL-C6ASF-LSZH-W

TechNex Shopping Event

Hurry and get discounts up to 50.000 L.E for 3 months on all orders...

ProLink S/FTP CAT.6A 650 MHz PL-C6ASF-LSZH-W

Prolink CAT. 6A S/FTP CABLE, 4 PAIR 23 AWG , LSZH , Waite , RIB

Prolink CAT. 6A S/FTP CABLE,White – PL-C6ASF-LSZH-W

12.069,00 EGP

Out of stock

call for price

Out of stock

Add to compare

Add to wishlist

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Description

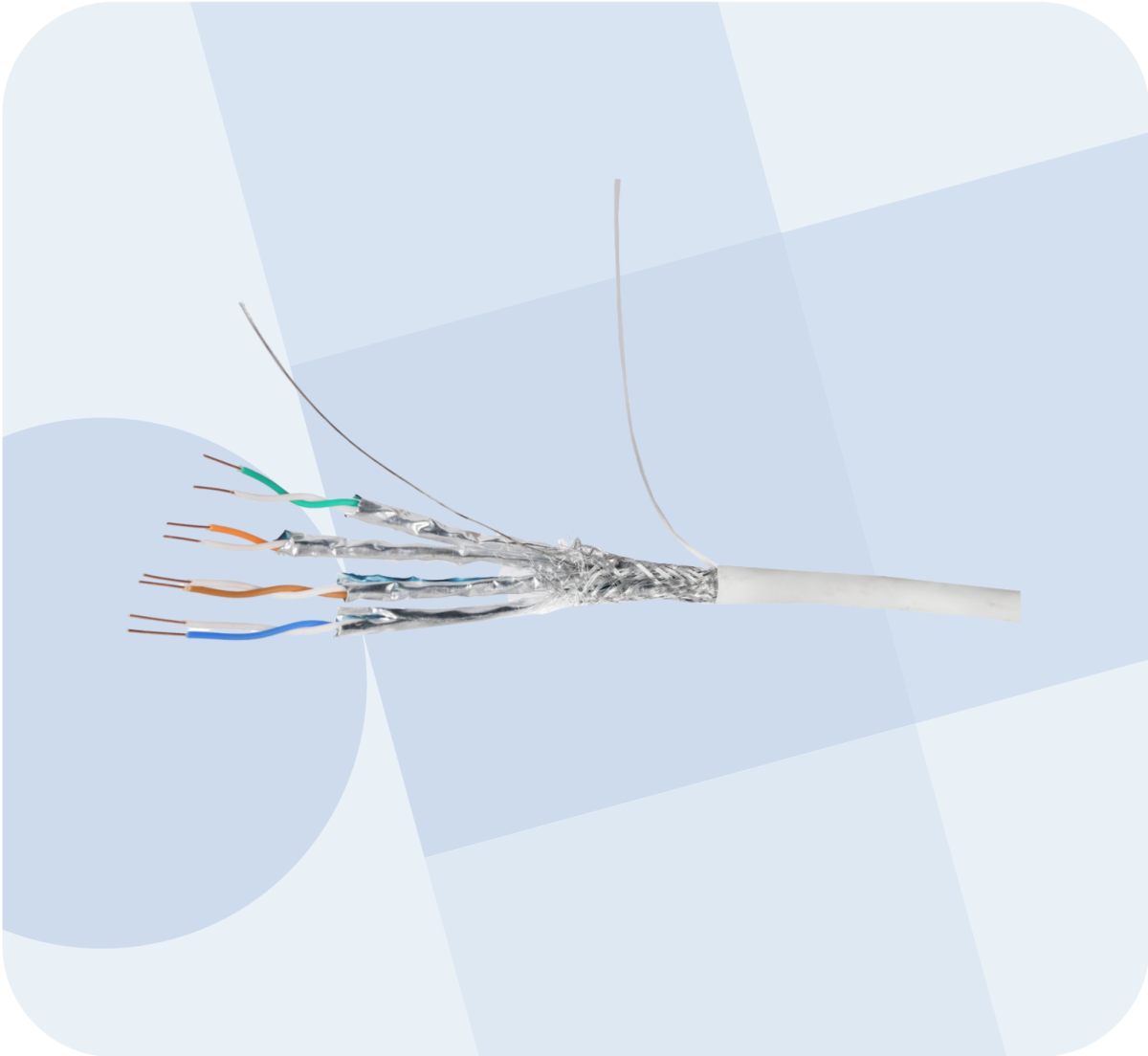

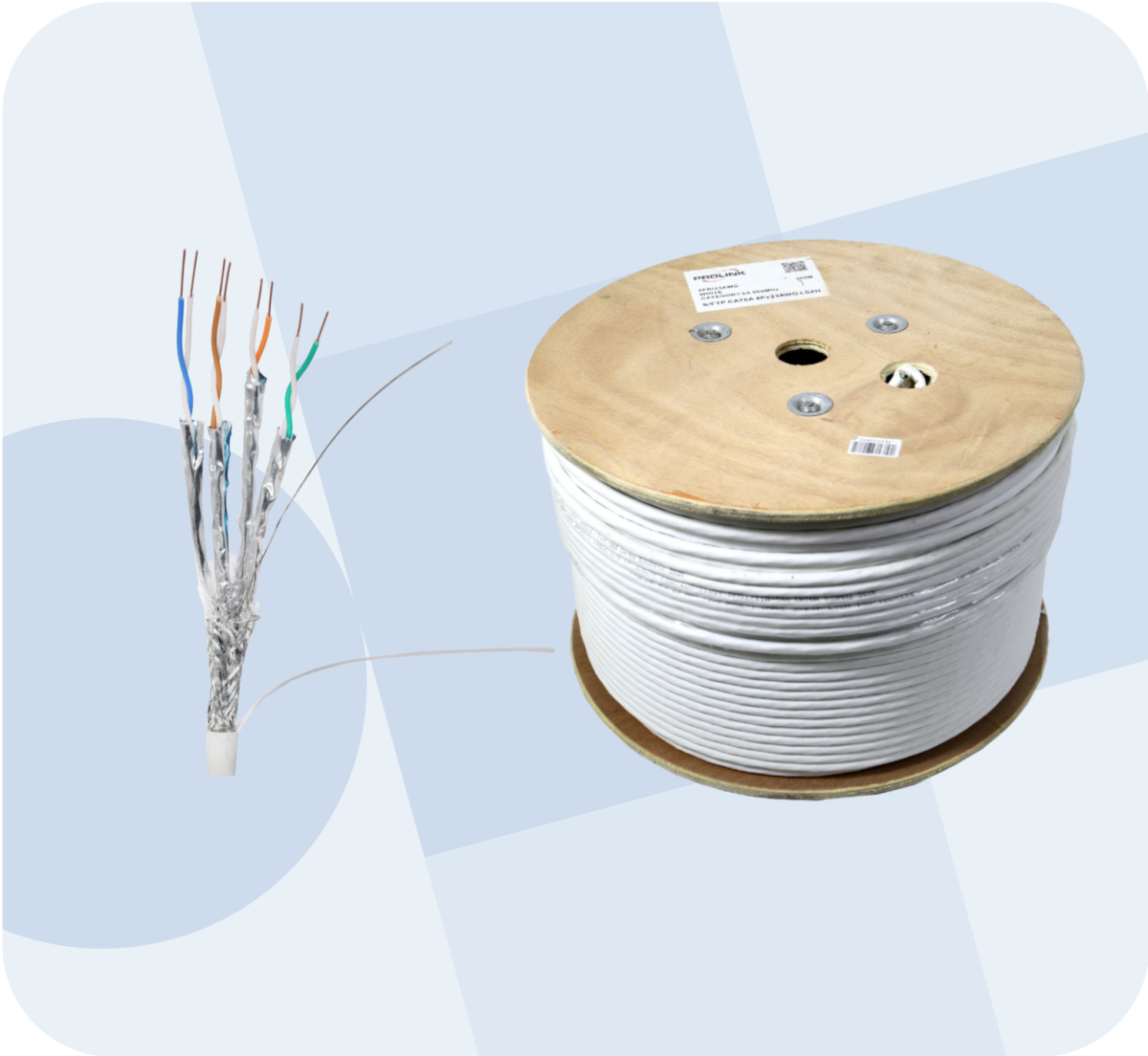

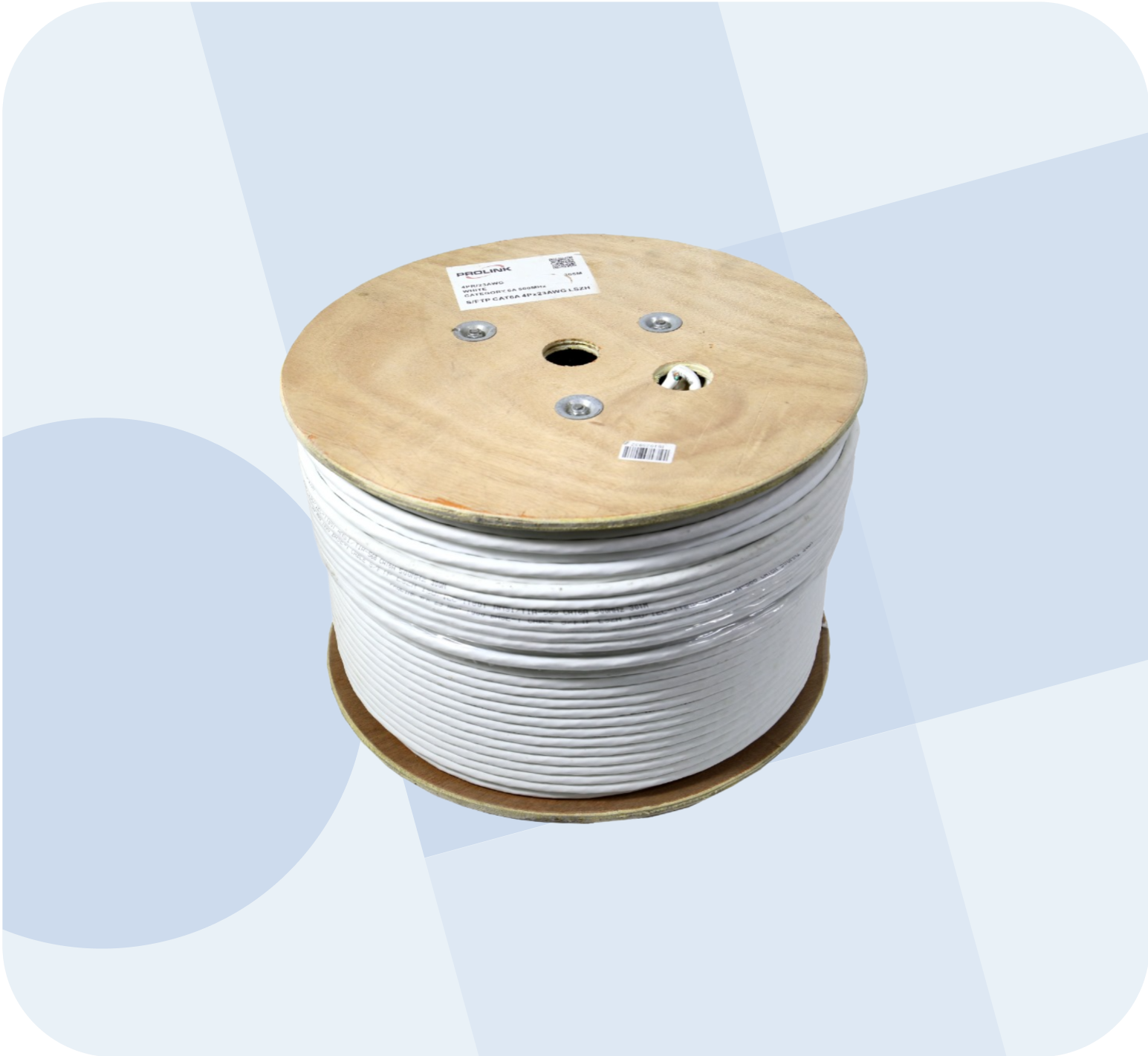

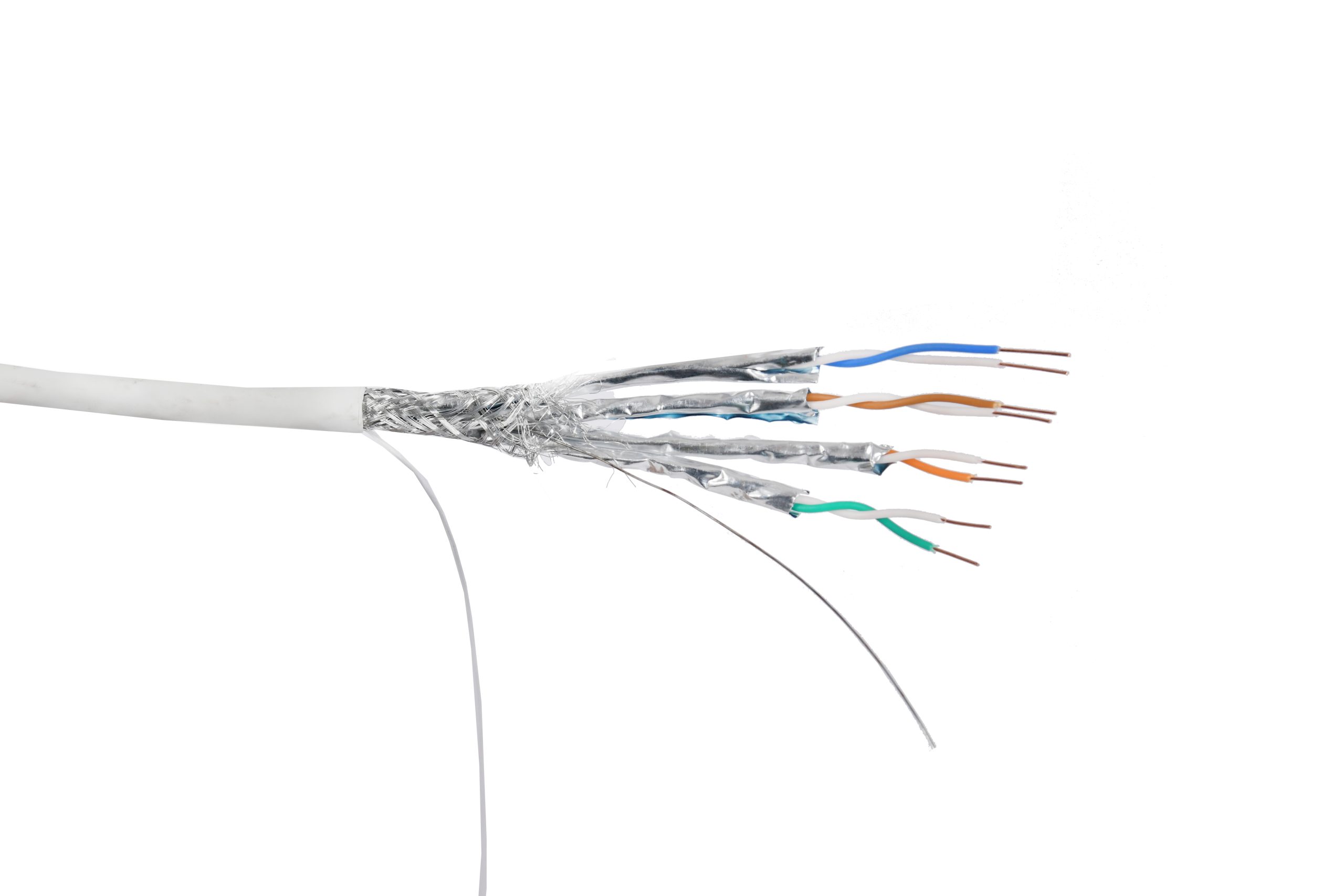

ProLink S/FTP CAT.6A 650 MHz PL-C6ASF-LSZH-W

The ProLink S/FTP CAT.6A 650 MHz PL-C6ASF-LSZH-W cable is designed for high-performance networking applications. It meets international standards and offers exceptional reliability. Here are the key features:

Frequency Range: Suitable for frequencies of up to 650 MHz.
Category: Complies with Category 6A S/FTP, Class E (650MHz) according to ISO/IEC 11801.
Conductor: Bare solid copper wire AWG23 (≥ Ø 0.56 mm).
Insulation: Polyethylene (≤ Ø 1.35 mm Nominal).
Twisting: 2 cores to the pair (Shielded & Foil twisted pair).
Cable Lay Up: 4 pairs to the core.
Cable Core Lying: Waterproof compound to prevent moisture migration and water protection.
Sheath: White, LSZH (Low Smoke Zero Halogen).

Technical Specifications:

Outer Diameter: Nominal 7.2 mm.
Weight: 20 kg / km.
Thermal Load: 590 MJ / km.
Tensile Force: 100 N.

Electrical Properties (at 20°C ± 5°C):

DC Loop Resistance: ≤ 16.5 Ω / 100 m.
Resistance Unbalance: ≤ 2%.
Test Voltage: DC, 1 min, core/core 1000 V.
Insulation Resistance: 500 V ≥ 5000 MΩ * km.
Capacitance: 43 pF / m (nominal).
Mean Characteristic Impedance: 100±5Ω.
Nominal Velocity of Propagation: Approx. 76%.
Propagation Delay (at 1 MHz): ≤ 500 ns / 100 m.
Delay Skew: ≤ 20 ns / 100 m.
Coupling Attenuation: ≥ 80 dB.
Balance TCL (at 1 MHz): ≤ 40 dB.
Typical Transmission Characteristics (at 20°C):
- Attenuation (dB/100 m):
  - 4 MHz: 3.8 dB.
  - 10 MHz: 5.9 dB.
  - 20 MHz: 62.5 dB.
  - 250 MHz: 45.3 dB.
  - 500 MHz: 45.3 dB.
- NEXT (dB):
  - 4 MHz: 66.3 dB.
  - 10 MHz: 63.3 dB.
  - 20 MHz: 60.3 dB.
  - 250 MHz: 31.1 dB.
  - 500 MHz: 39.3 dB.
- PS-NEXT (dB):
  - 4 MHz: 97 dB.
  - 10 MHz: 97 dB.
  - 20 MHz: 57.3 dB.
  - 250 MHz: 45.3 dB.
  - 500 MHz: 45.3 dB.
- ACR-F (dB/100 m):
  - 4 MHz: 23 dB.
  - 10 MHz: 19.1 dB.
  - 20 MHz: 18.5 dB.
  - 250 MHz: 25 dB.
  - 500 MHz: 17.3 dB.
- PS-ACR-F (dB/100 m):
  - 4 MHz: 24 dB.
  - 10 MHz: 15 dB.
  - 20 MHz: 14.2 dB.
  - 250 MHz: 28 dB.
  - 500 MHz: 17.3 dB.
