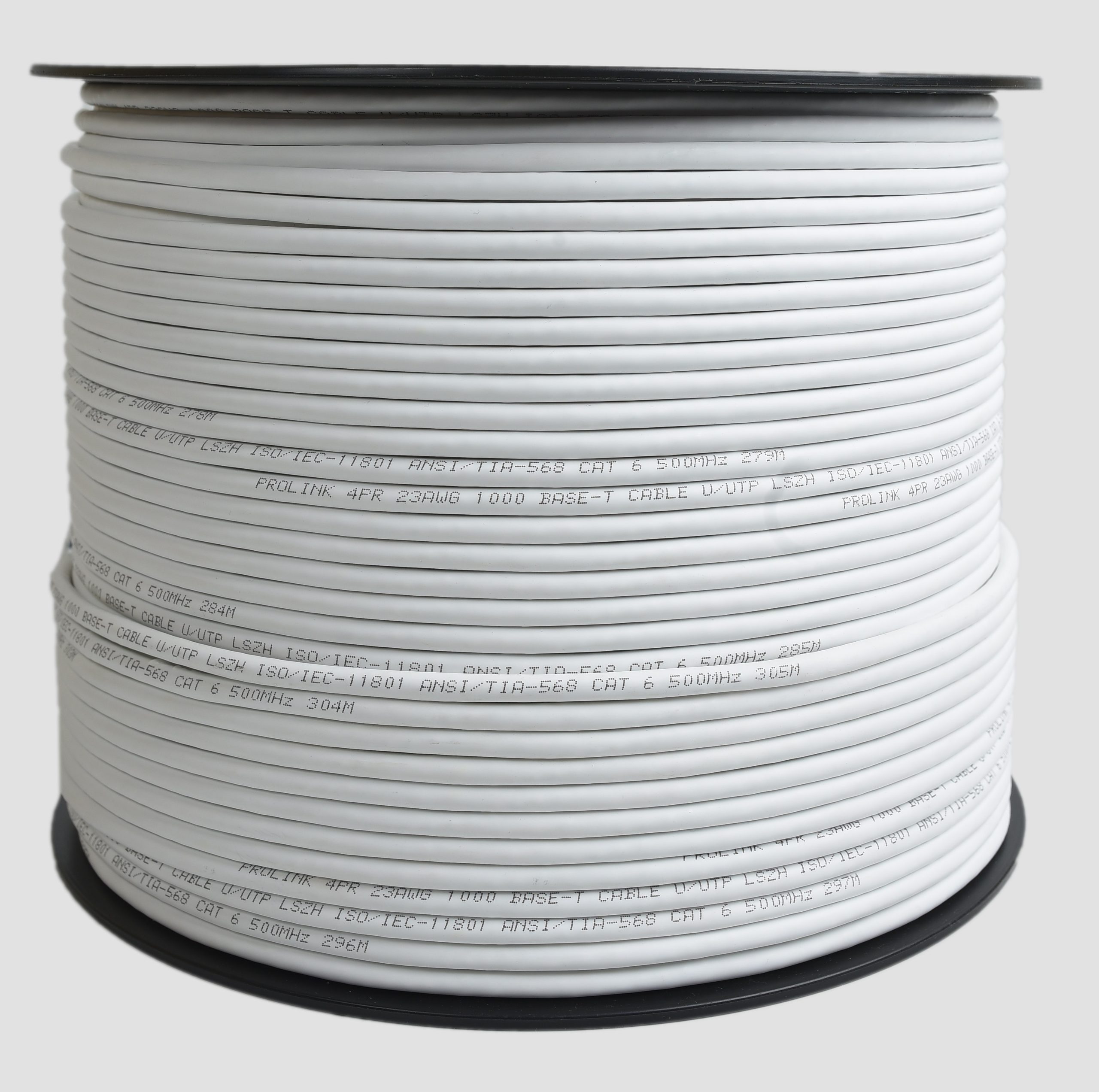

ProLink U/UTP CAT.6 250 MHZ PL-C6-LSZH-W
The ProLink U/UTP CAT.6 250 MHZ PL-C6-LSZH-W is a high-quality network cable designed for connecting network equipment to patch panels and telecommunications outlets. Here are its key features:
- Category 6 U/UTP Cable: This cable meets the requirements of Category 6, ensuring reliable performance for high-speed data transmission.
- Solid Copper Conductor (AWG23): The solid copper wire construction provides excellent conductivity.
- Low Smoke Zero Halogen (LSZH) White Jacket: The LSZH jacket ensures fire safety and environmental benefits.
- 4 Pairs to the Core: The cable is constructed with four pairs twisted together, separated by a non-metallic cross separator (spline).
- Waterproof Compound: The core is protected with a waterproof compound to prevent moisture migration.
- Application Scenarios: Suitable for primary (campus), secondary (riser), and tertiary (horizontal) installations. It supports IEEE 802.3 (10Base-T, 100Base-T, 1000Base-T), IEEE 802.5 (16 MB), ISDN, TPDDI, and ATM.
- Standards Compliance: Meets ISO/IEC 11801, EN 50288-6-1, IEC 61156-5, and EN 50173-1 standards.
- Water Penetration Rating: Complies with IEC 60794-1-2F5, method B.
- Fire Rating: LSZH sheath with no smoke generation (IEC 60754-2).
- Technical Data:
- Nominal Outer Diameter: 7.2 mm
- Weight: 20 kg/km
- Tensile Force: 100 N
- Bending Radius: ≥ 33 mm during operation (without load), ≥ 65 mm during installation (with load)
- Temperature Range: -55°C to +60°C (operation), -15°C to +50°C (installation)
- Impedance: 100 ± 5 Ω
- Attenuation, NEXT, PS-NEXT, ACR-F, PS-ACR-F, Return Loss, and other electrical properties meet industry standards.
Trust the ProLink U/UTP CAT.6 250 MHZ PL-C6-LSZH-W for reliable connectivity in your network installations!
