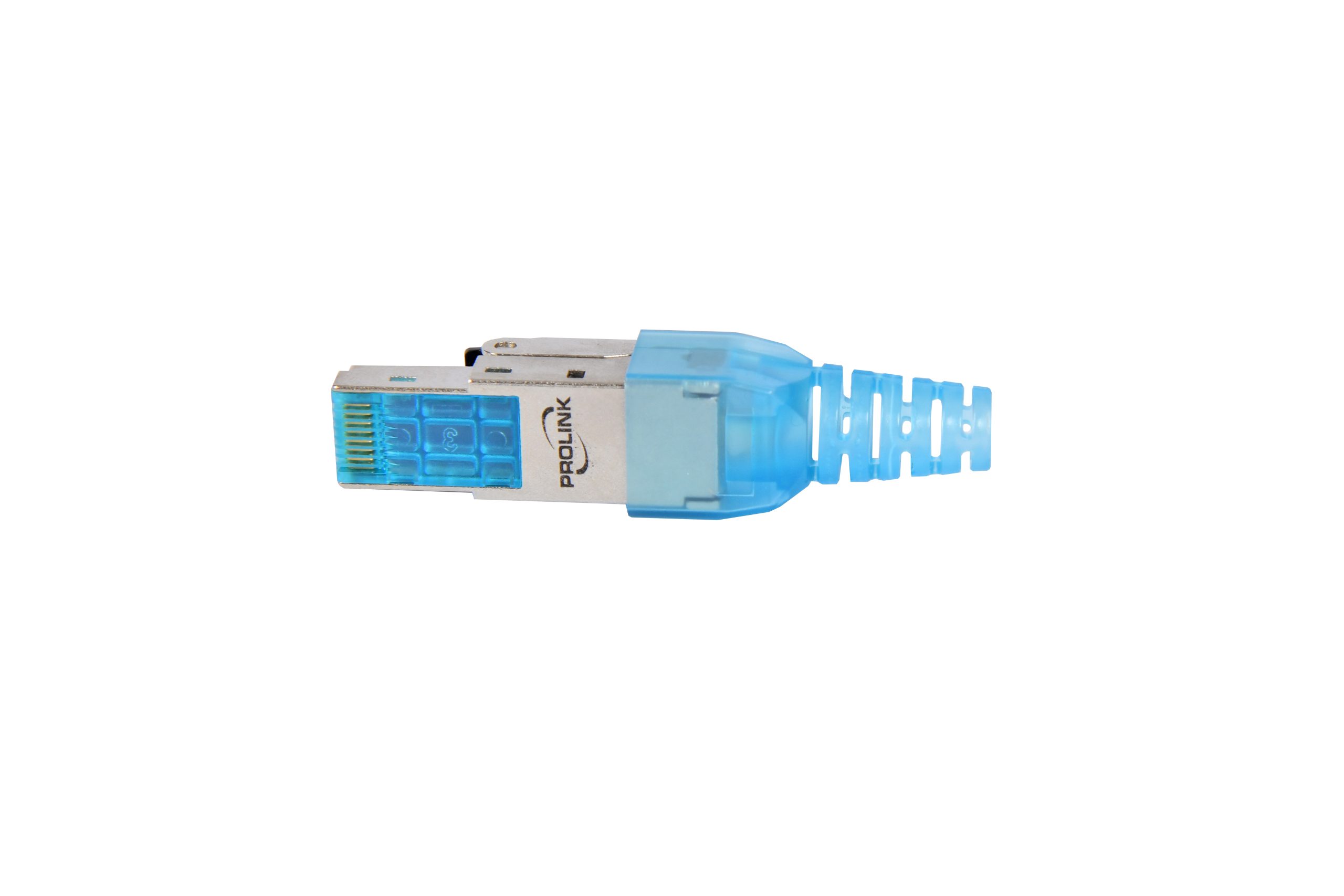

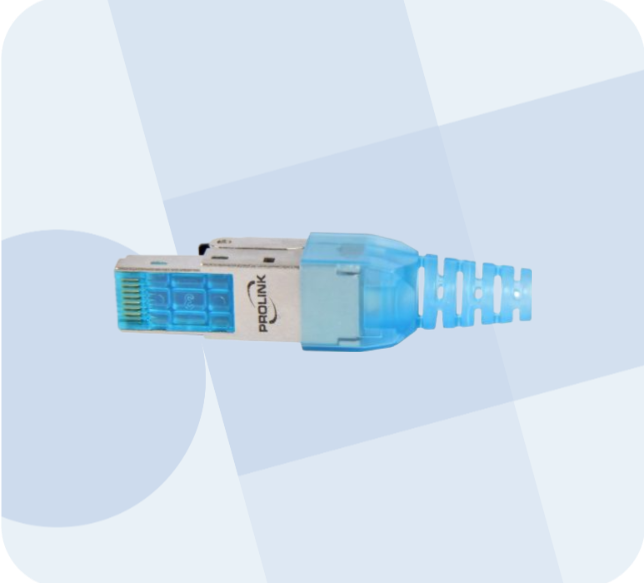

ProLink S/FTP CAT.6A 650 MHZ PL-RJ6AS
The ProLink CAT6A STP Connector (PL-RJ6AS) is a high-performance, tool-less connection module designed for 10G RJ45 applications. Here are the key specifications:
- Cable Type: Round, shielded
- Conductor Type: Solid and stranded
- Positions/Loaded Contacts: 8/8
- Termination Type: IDC (Insulation Displacement Connector)
- Compatible Cable Diameter (Maximum): 6 mm (0.236 in)
- Compatible Cable Diameter (Minimum): 5.1 mm (0.201 in)
- Compatible Insulated Conductor Diameter (Maximum): 1.09 mm (0.043 in)
- Compatible Insulated Conductor Diameter (Minimum): 0.89 mm (0.035 in)
- Contact Plating Thickness: 1.27 μm
- Compatible Conductor Gauge (Solid): 26–23 AWG
- Compatible Conductor Gauge (Stranded): 26–23 AWG
- Operating Temperature Range: -40°C to +60°C (-40°F to +140°F)
- Safety Standard: UL 1863
The ProLink S/FTP CAT.6A 650 MHZ PL-RJ6AS ensures fast, reliable connections with consistent results. Whether you’re setting up a network in an office, data center, or home, this connector provides exceptional performance.
