Description

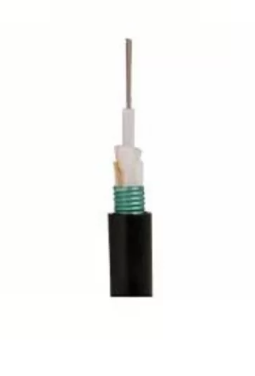

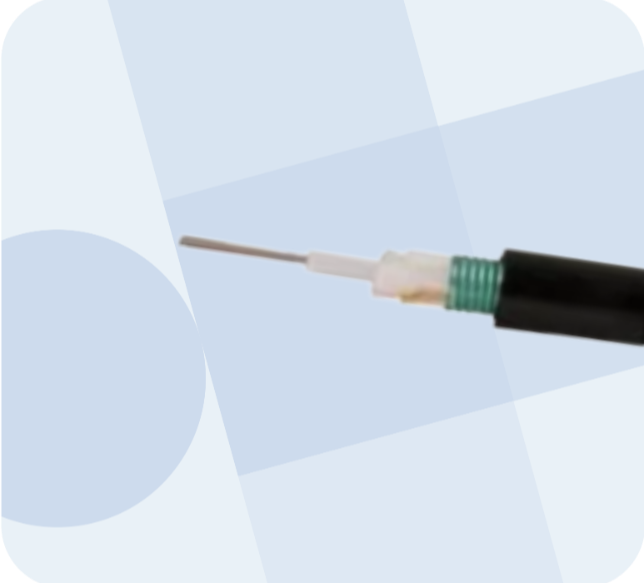

ProLink Double ARMOR Fiber Cable 12-CORE SM9/125

The ProLink Double ARMOR Fiber Cable 12-CORE SM9/125 (PL-FOC12D-SM) is a robust and high-performance single-mode fiber optic cable designed for reliable data transmission. Here are its key specifications:

Fiber Type: Single Mode (OS2)
Core Diameter: 9/125 μm
Cladding Diameter: 124.8 ± 0.7 μm
Coating Diameter: 245 ± 5 μm
Cable Outer Diameter: 12.5 mm
Steel Wire Armor: Provides enhanced protection against physical damage
Color Options: Available in blue, orange, green, brown, gray, natural color, red, black, yellow, purple, pink, and aqua blue
Loose Tube Configuration: Two loose tubes, each containing 12 fibers
Material of Reinforcement: Phosphating steel wire (1.0 mm)
Outer Jacket Material: Low Smoke Zero Halogen (LSZH)
Sheath Color: Black
Flame Retardant: Meets industry standards for safety
Mechanical Characteristics:
- Tension (Long Term): 600 N
- Tension (Short Term): 1500 N
- Crush (Long Term): 300 N/100 mm
- Crush (Short Term): 1000 N/100 mm
- Min. Bend Radius (Dynamic): 20D
- Min. Bend Radius (Static): 10D
Temperature Range:
- Installation: -20°C to +60°C
- Operating: -40°C to +70°C
- Storage: -40°C to +70°C
Compliance: Meets IEC and EIA/TIA 455 standards

Whether you’re deploying a new fiber network or upgrading existing connections, trust in the ProLink Double ARMOR Fiber Cable for exceptional performance and durability.
