ProLink Fiber Cable PL-FOC12D-OM3

Fiber Cable PL-FOC12D-OM3

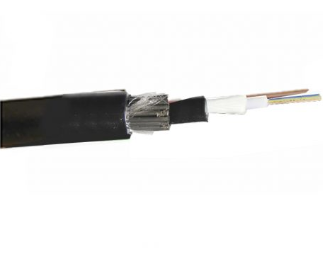

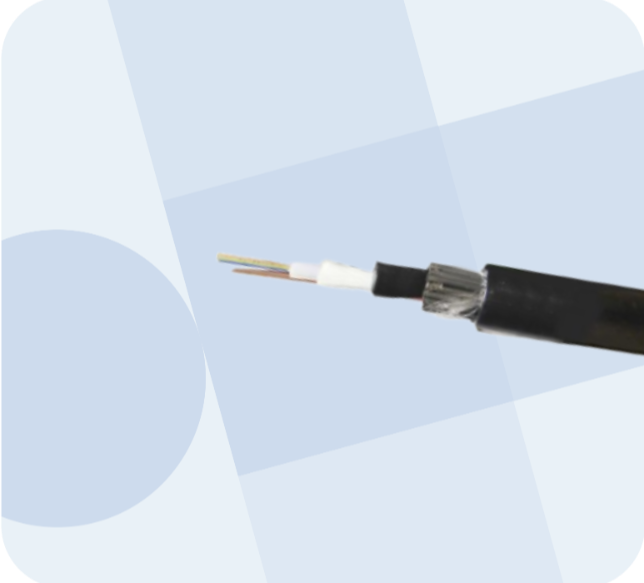

Our Fiber Cable PL-FOC12D-OM3 is designed to meet the highest customer needs and exceed expectations. This central loose tube cable features 12 cores of multimode 50/125 OM3 fiber, providing excellent performance for various applications. Key specifications include:

• Core Diameter: 50.0±2.5 μm
• Cladding Diameter: 124.8±1.0 μm
• Low Insertion Loss: Minimal signal loss during connection.
• High Return Loss: Ensures reliable data transmission.
• Armor: Single stainless steel armor for added protection.
• Outer Diameter: 10 mm (OD:10MM)
• Color Options: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua.

Mechanical and Environmental Characteristics:

• Tension (Long Term): 600 N
• Tension (Short Term): 1500 N
• Crush (Long Term): 300 N/10cm
• Crush (Short Term): 1000 N/10cm
• Min. Bend Radius (Dynamic): 20 times the cable diameter (20D)
• Min. Bend Radius (Static): 10 times the cable diameter (10D)
• Operating Temperature: -40°C to +70°C
